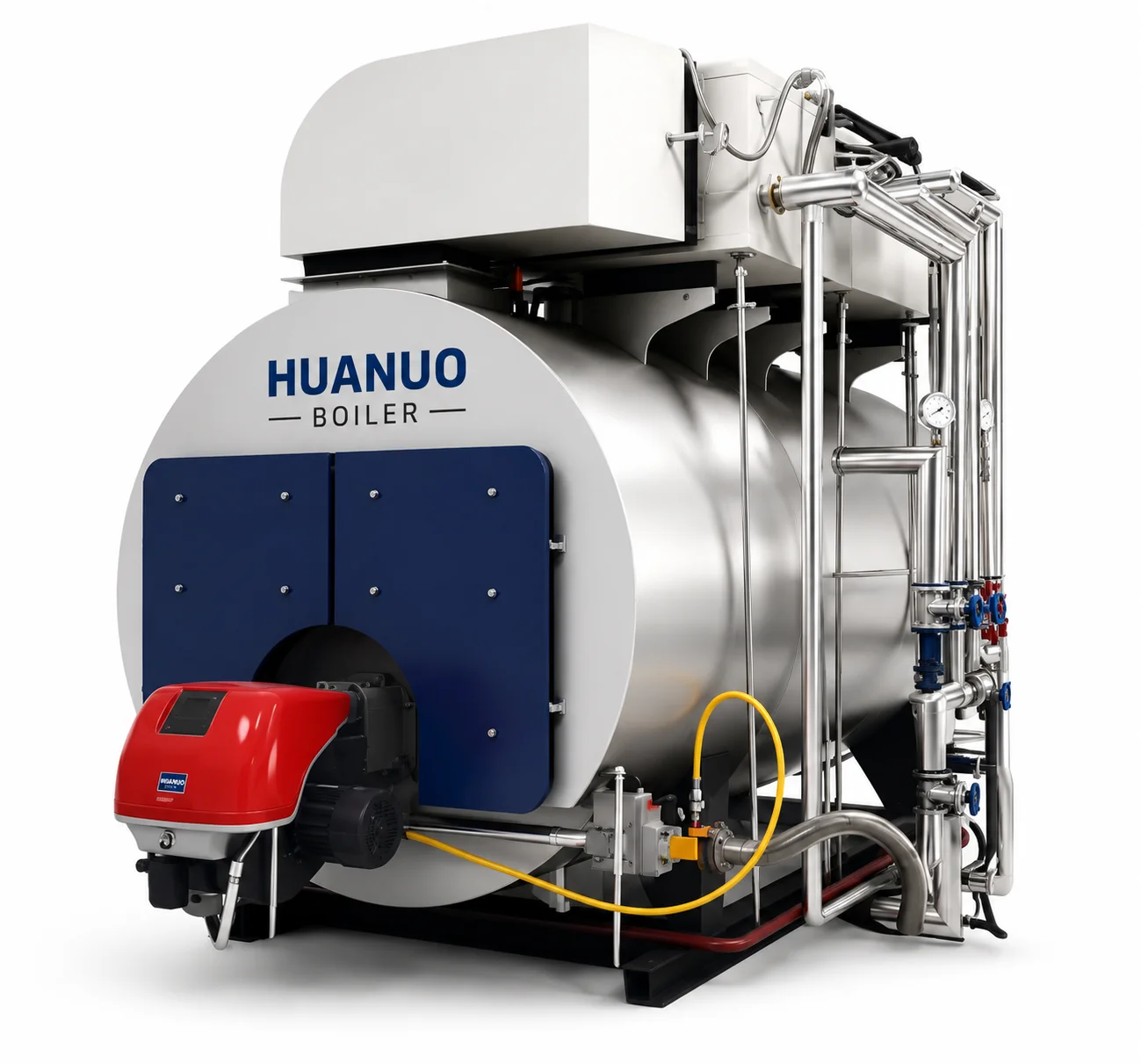

Product Overview
The WNS Series Low-NOx Gas-Fired Steam Boiler with Condensing Economizer is a high-efficiency packaged boiler designed to provide stable saturated steam for clean-fuel industrial applications. Featuring a horizontal three-pass wet-back fire-tube structure, a corrugated furnace, and an integrated condensing economizer, it delivers reliable performance, reduced fuel consumption, and long service life. With a low-NOx burner and fully automatic smart control system, it ensures clean combustion, safe operation, and dependable steam supply across a wide range of industries.

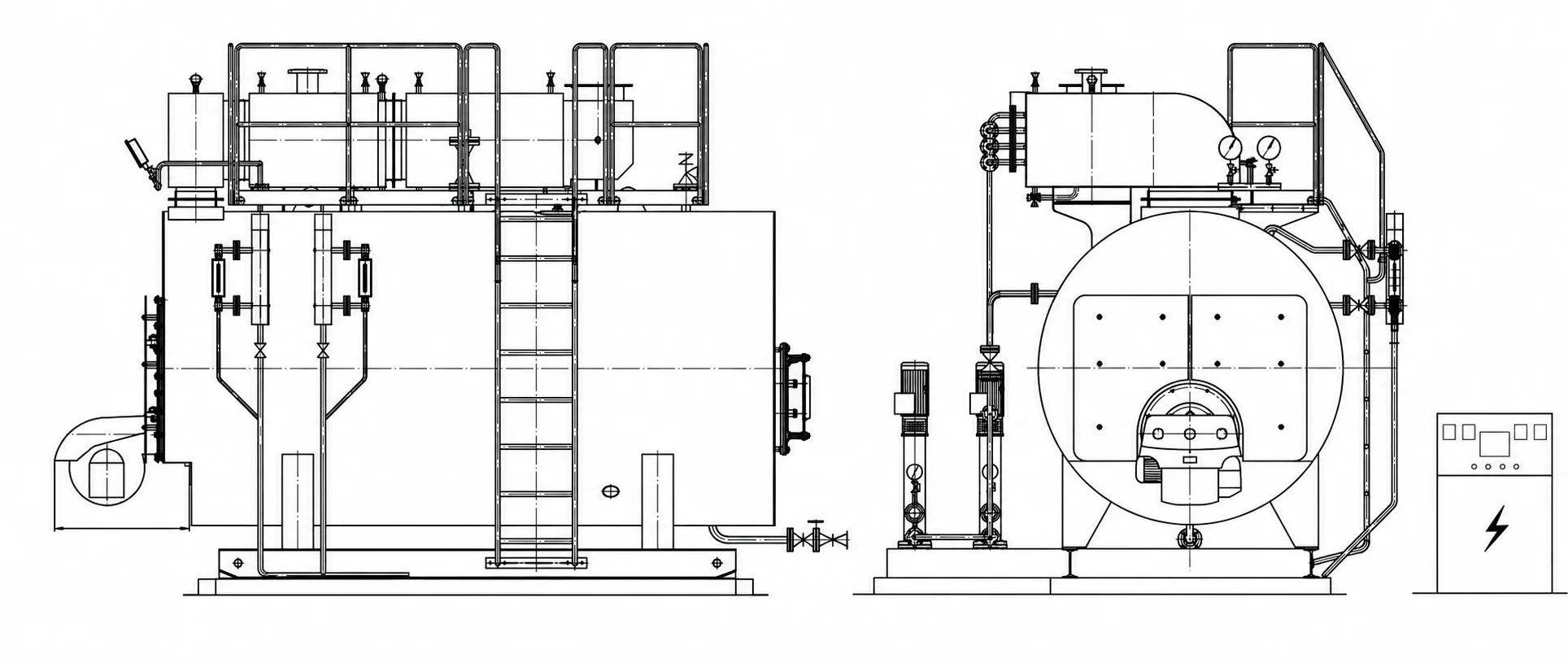

Product Structure Drawing
Key Advantages
The integrated economizer and condenser recover sensible and latent heat from flue gas, achieving up to 105% thermal efficiency (LHV basis) under suitable conditions and significantly reducing fuel consumption.
Built with 09CrCuSb (ND steel) spiral-finned tubes for enhanced acid dew-point corrosion resistance. The top-mounted design saves installation space and facilitates condensate drainage.
Equipped with a high-performance low-NOx burner for stable, efficient combustion and reduced emissions, with configurations available to meet stringent local environmental regulations.
The three-pass wet-back structure and fully corrugated furnace maximize heat transfer, accommodate thermal expansion, and enhance structural durability for reliable steam generation.
The compact, integrated structure and top-mounted heat-recovery system minimize installation footprint, simplify on-site installation, and reduce boiler-room construction costs.
Fully automatic combustion, pressure, and water-level controls ensure stable steam output and reduced operator workload, while comprehensive safety interlocks provide reliable operational protection.

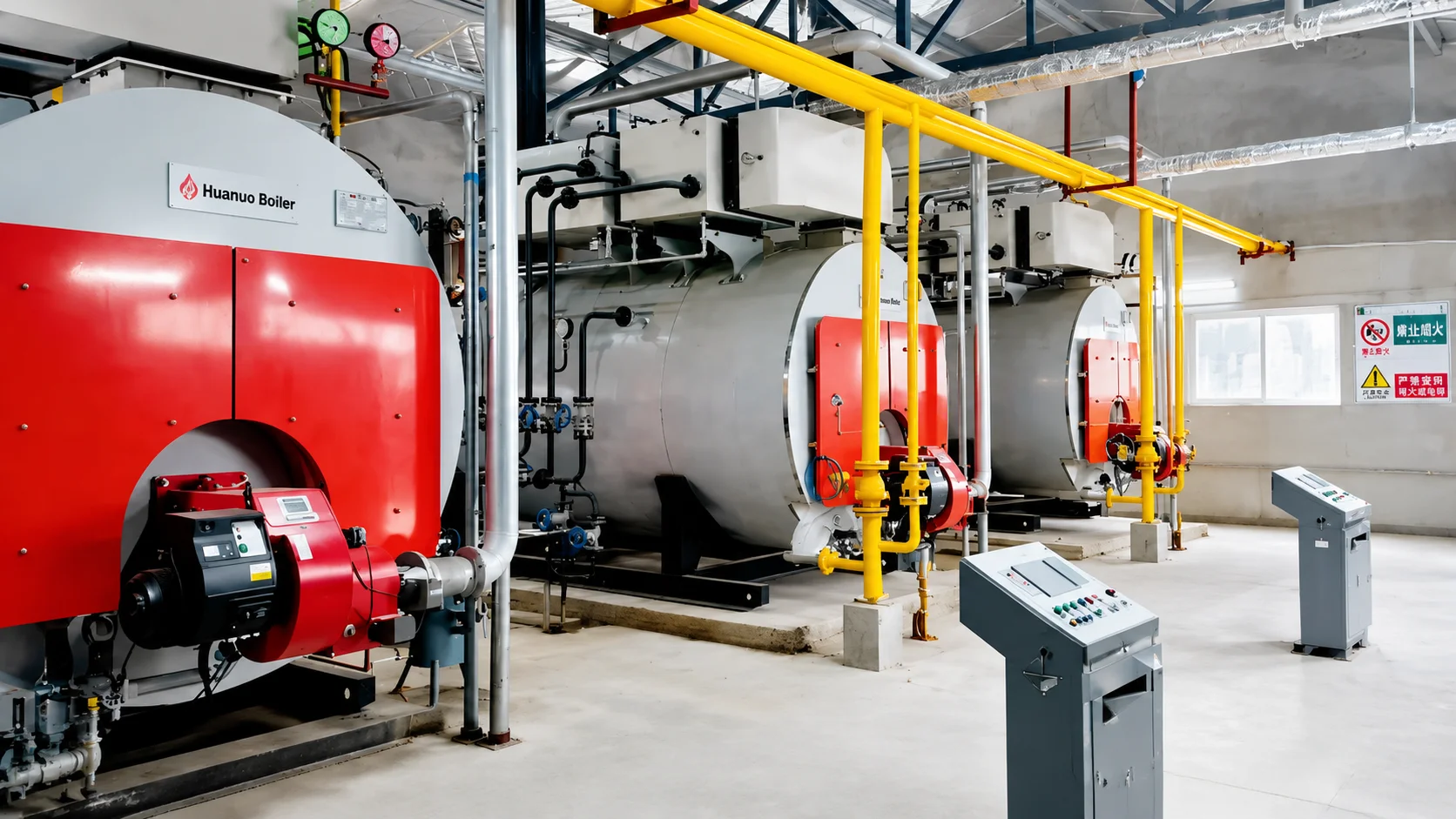

Typical Applications
Cooking, pasteurization, cleaning-in-place (CIP), and process heating
Dyeing, washing, fabric finishing, and drying processes
Process heating, equipment cleaning, and sterilization with appropriate steam-quality controls
Reactor and vessel heating, batch processes, and thermal processing
Pulp preparation, paper drying, and equipment heating
Industrial laundry, washing, drying, and centralized hot-water production
Technical Specifications
| Item | WNS2 | WNS3 | WNS4 | WNS5 | WNS6 | WNS8 | WNS10 | WNS12 | WNS15 | WNS20 | ||
| ~1.25–Q | ||||||||||||
| Rated evaporation capacity | t/h | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | |
| Rated working pressure | MPa | 1.25 | ||||||||||
| Rated steam temperature | °C | 194 | ||||||||||
| Feed water temperature | °C | 20 | 104 | |||||||||
| Thermal efficiency | % | ≥ 105 | ||||||||||
| Full water capacity | L | 5800 | 6800 | 8800 | 8900 | 10000 | 14000 | 15600 | 16500 | 18000 | 22100 | |
| Steam outlet | DN | 65 | 80 | 100 | 125 | 150 | 200 | |||||
| Feed water | DN | 40 | 50 | 65 | 80 | |||||||
| Pollution discharge | DN | 40 | 50 × 2 | |||||||||
| Natural gas | Nm³/h | 142.5 | 213.6 | 285.6 | 356.5 | 427.8 | 574.4 | 713 | 855.6 | 1070 | 1426 | |
| Overall size | Length | mm | 4550 | 5050 | 5300 | 5600 | 6300 | 6900 | 7600 | 7800 | 8000 | 9000 |
| Width | mm | 2100 | 2150 | 2250 | 2350 | 2420 | 2650 | 2700 | 2950 | 3400 | 3500 | |
| Height | mm | 2350 | 2500 | 2850 | 3020 | 3300 | 3350 | 3450 | 3550 | 3600 | 3600 | |
| Weight | T | 7.41 | 10.2 | 11.6 | 13.8 | 18.5 | 21.12 | 26.64 | 31.2 | 39.2 | 45.4 | |
