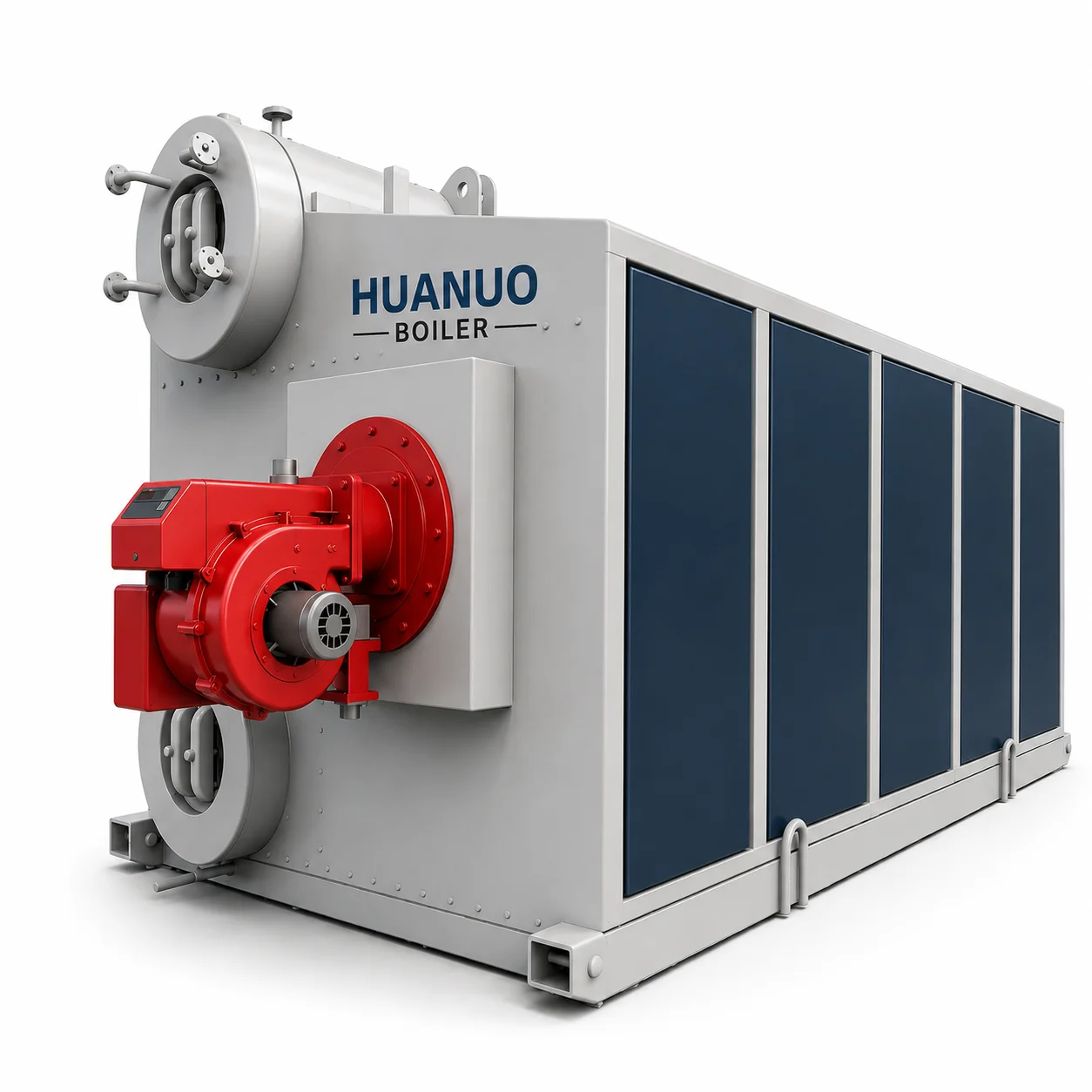

Product Overview
The SZS Series Gas/Oil-Fired Water-Tube Steam Boiler is designed for reliable, high-capacity industrial steam supply. Its longitudinal double-drum D-type layout, membrane water-wall furnace, and ample heating surfaces support stable output and efficient heat transfer. An optimized combustion system with flue-gas heat recovery reduces fuel consumption, while optional ultra-low-NOx configurations, automatic controls, and multi-layer safety interlocks support efficient, environmentally responsible operation. Factory preassembly and modular delivery options help streamline installation across a wide range of project sizes.

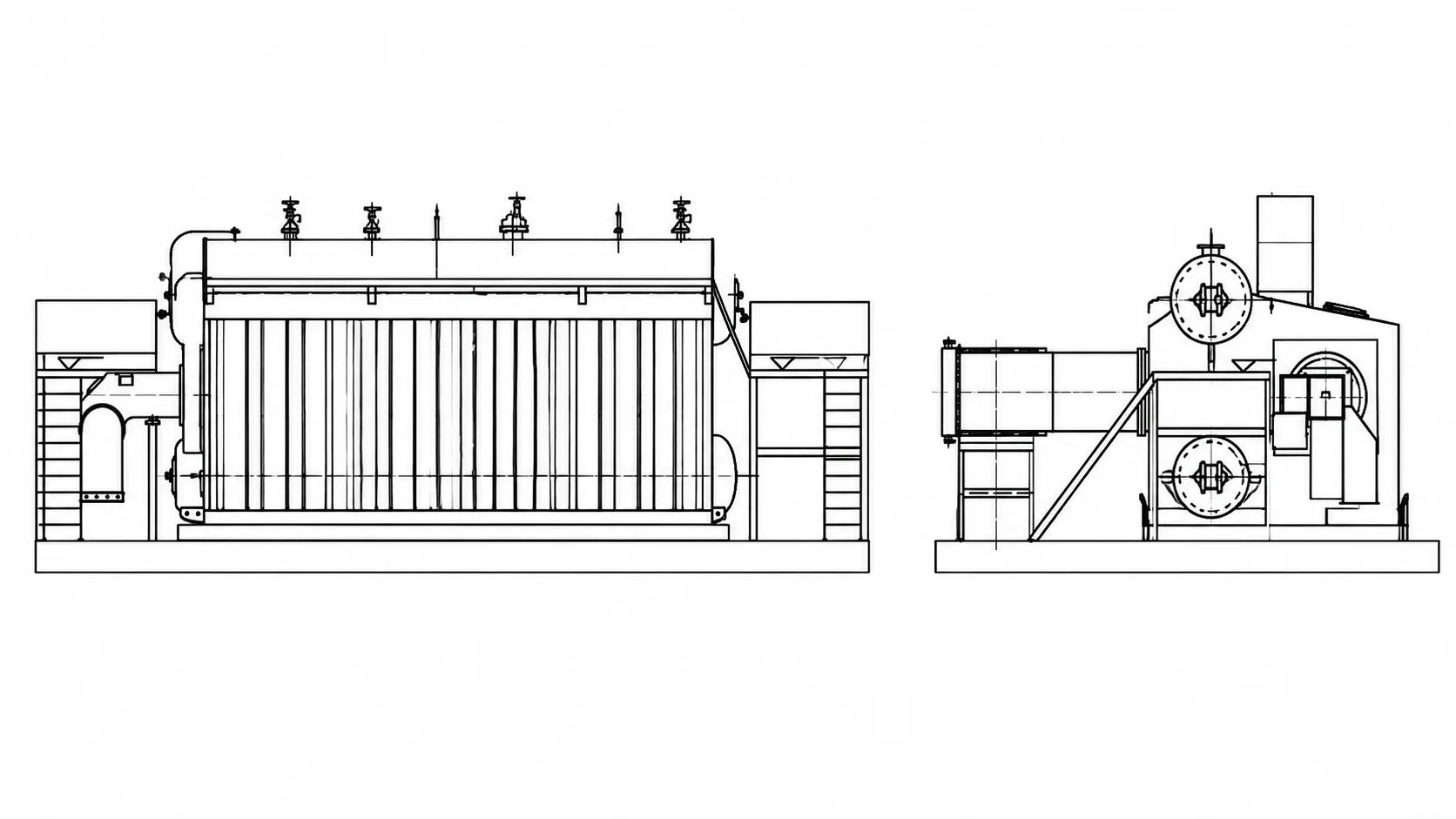

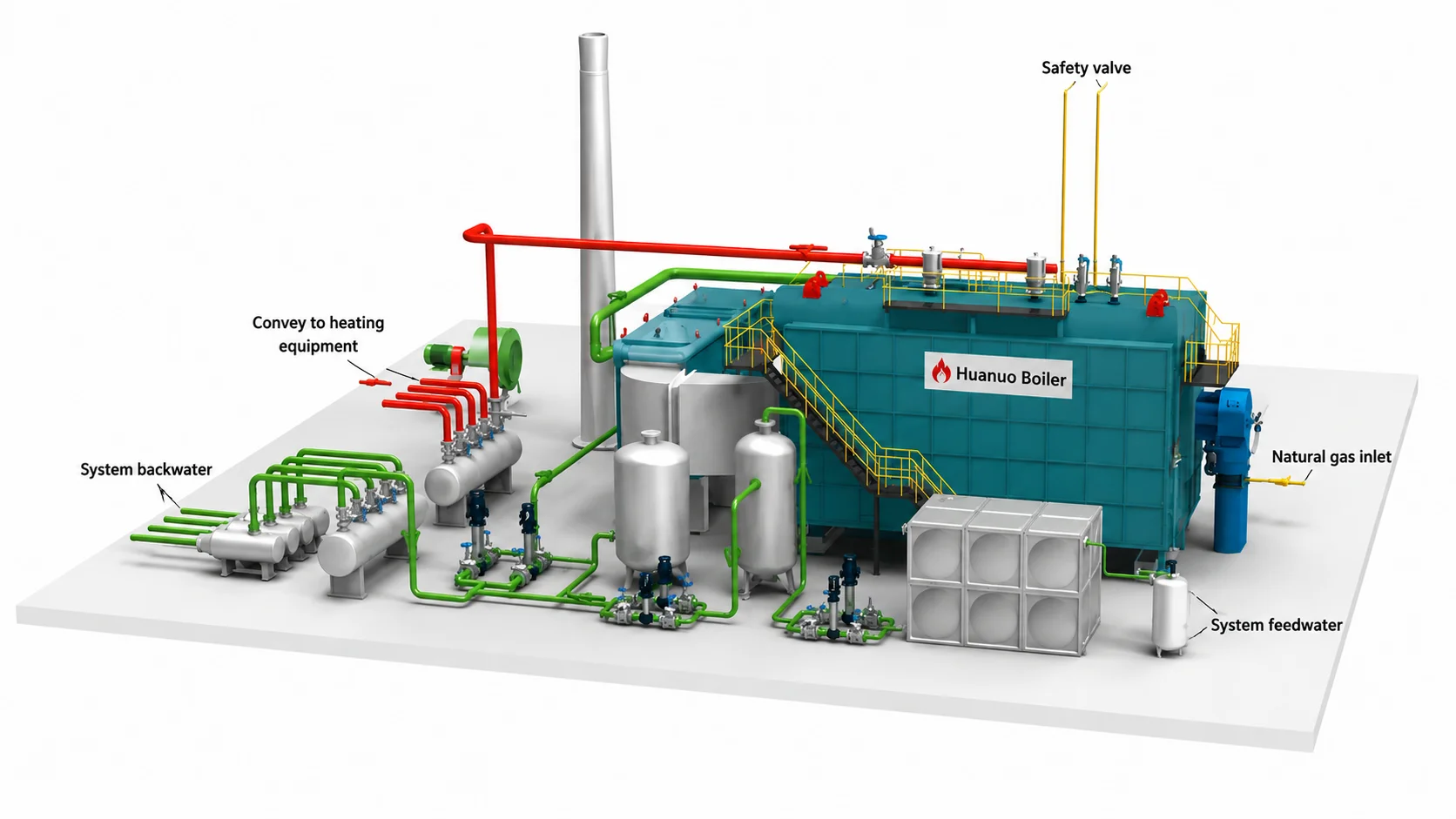

Product Structure Drawing
Key Advantages
A spacious combustion chamber and spiral-finned heat-recovery system improve combustion and recover exhaust heat, supporting thermal efficiency of ≥98% under specified design conditions.
Flue gas recirculation (FGR), staged combustion, and a matched burner can achieve NOx ≤30 mg/Nm³ on specified natural-gas configurations, subject to emission test conditions and commissioning.
The longitudinal double-drum D-type structure and close-pitch membrane water walls enhance furnace sealing, radiant heat absorption, and durability while reducing refractory maintenance.
Ample heating surfaces and steam-water capacity promote stable steam pressure and output. Sliding supports beneath the lower drum accommodate thermal expansion during operation.
Automatic controls monitor feedwater, steam pressure, flame status, and water level. A furnace pressure-relief door can be provided where required by the approved design.
Factory preassembly and transport-ready modular sections reduce on-site work and installation time. Delivery arrangements are tailored to boiler capacity and shipping constraints.
Typical Applications
Reactor heating, distillation, separation, and plant utility steam
Pulp processing, paper drying, and continuous process steam
Large-scale cooking, sterilization, evaporation, and process heating
Dyeing, finishing, and continuous fabric drying
Process heating, steam tracing, and equipment cleaning
Central steam supply for production lines and industrial facilities
Technical Specifications
| Item | Model | SZS2-2.5-Q.Y | SZS4-2.5-Q.Y | SZS6-1.25-Q.Y SZS6-1.6-Q.Y SZS6-2.5-Q.Y | SZS10-1.25-Q.Y SZS10-1.6-Q.Y SZS10-2.5-Q.Y | SZS15-1.25-Q.Y SZS15-1.6-Q.Y SZS15-2.5-Q.Y | SZS20-1.25-Q.Y SZS20-1.6-Q.Y SZS20-2.5-Q.Y | SZS25-1.25-Q.Y SZS25-1.6-Q.Y SZS25-2.5-Q.Y | SZS30-1.25-Q.Y SZS30-1.6-Q.Y SZS30-2.5-Q.Y | |
| Rated evaporation capacity | t/h | 2 | 4 | 6 | 10 | 15 | 20 | 25 | 30 | |
| Rated working pressure | MPa | 2.5 | 2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | |
| Rated steam temperature | °C | 225 | 225 | 194/204/225 | 194/204/225 | 194/204/225 | 194/204/225 | 194/204/225 | 194/204/225 | |
| Feed water temperature | °C | 20 | 20 | 20 | 104/20 | 104/20 | 104/20 | 104/20 | 104/20 | |
| Heating area | Body | m² | 46.22 | 90.22 | 125.60 | 205.56 | 216.84 | 271.50 | 285.24 | 392.34 |
| Economizer | m² | 23.3 | 35.8 | 63.4 | 132.2 | 283.6 | 411.2 | 504.8 | 471.2 | |
| Condenser | m² | 15.0 | 25.4 | 41.5 | 62.8 | 101.1 | 134.7 | 168.3 | 252.4 | |
| Suitable fuel | Natural gas, biogas, coke gas, light oil, methanol, biodiesel etc. | |||||||||
| Fuel consumption | Natural gas | Nm³/h | 144 | 288 | 432 | 720 | 1080 | 1440 | 1800 | 2160 |
| Light oil | kg/h | 124 | 244 | 372 | 620 | 930 | 1240 | 1550 | 1860 | |
| Thermal efficiency | % | >98 | >98 | >98 | >98 | >98 | >98 | >98 | >98 | |
| Max. transportation weight | t | 20.4 | 25.0 | 32.0 | 40.0 | 45.0 | 50.6 | 60.0 | 68.2 | |
| Overall dimension (L × W × H) | m | 5.70 × 1.97 × 3.60 | 5.76 × 4.10 × 3.70 | 8.00 × 3.60 × 4.70 | 7.87 × 3.40 × 3.40 | 8.90 × 3.90 × 4.00 | 8.90 × 3.90 × 4.00 | 10.50 × 4.12 × 4.15 | 10.50 × 4.30 × 4.23 | |
