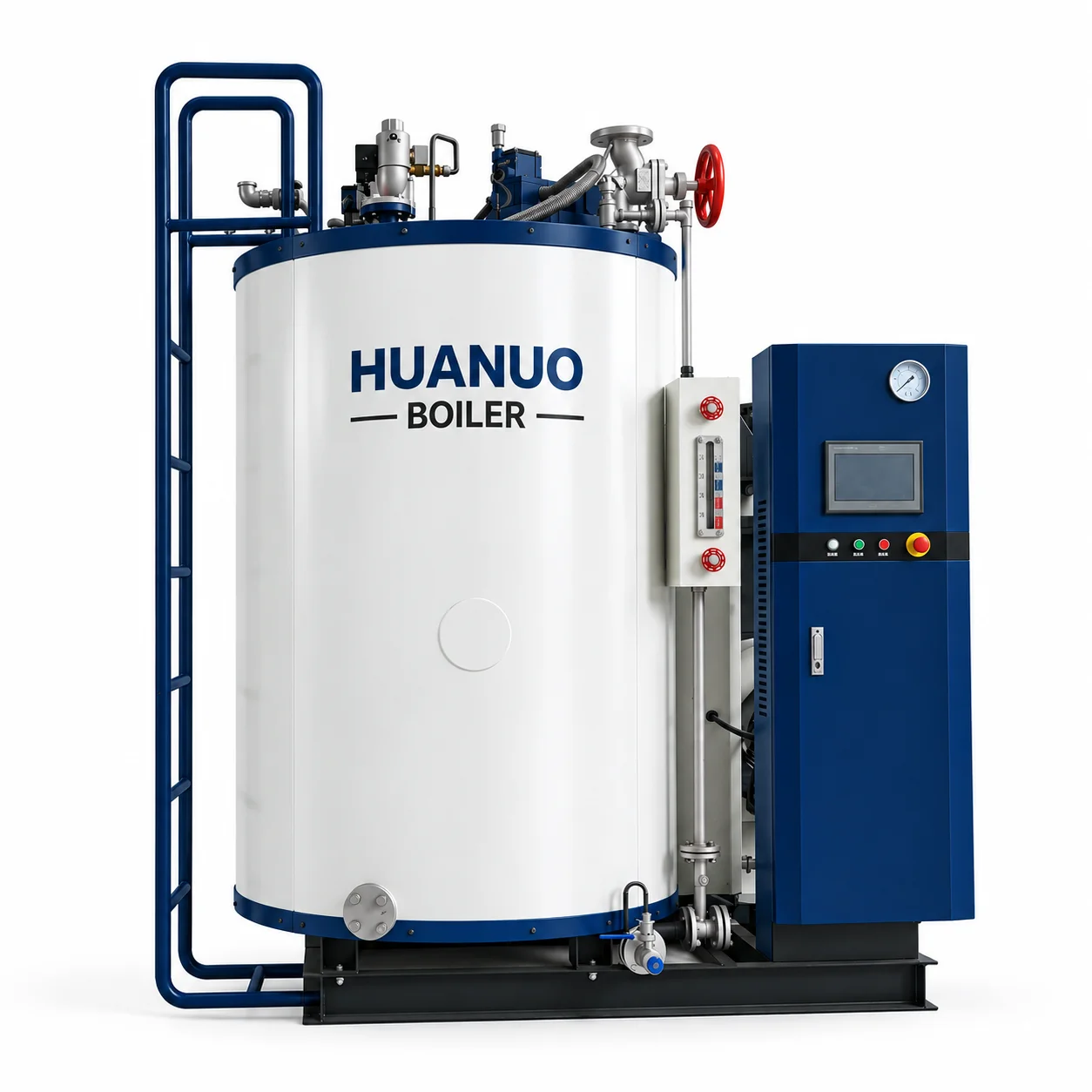

Product Overview
The LSS Series Gas/Oil-Fired Once-Through Steam Boiler is a compact vertical steam solution designed for rapid, on-demand industrial steam supply. Its low-water-volume once-through structure, W-shaped flue-gas path, and fin-connected dual-ring tubes provide fast start-up and efficient heat transfer. The factory-assembled package saves installation space and supports multi-unit parallel operation for variable steam loads. Intelligent combustion controls, multi-layer safety protection, and IoT-enabled remote monitoring help deliver efficient, reliable operation with reduced operator workload.

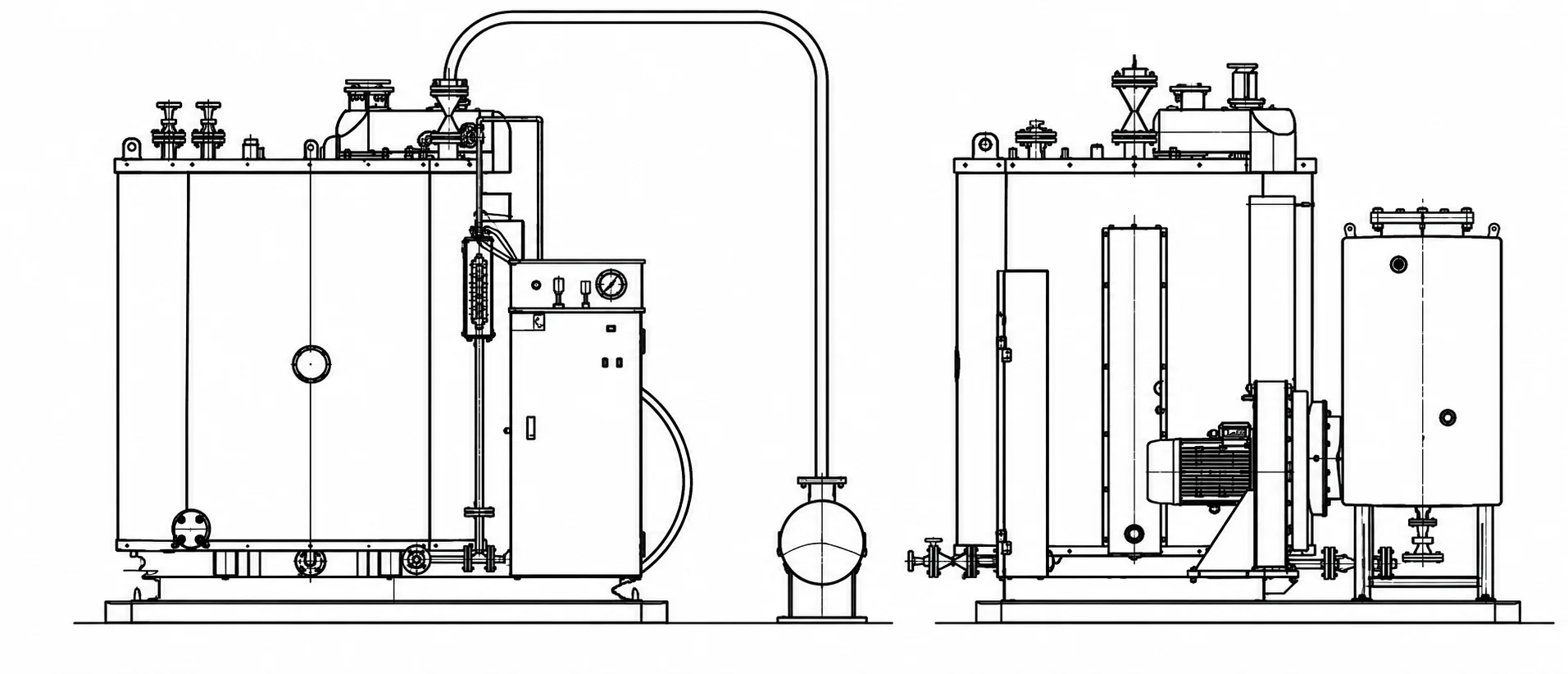

Product Structure Drawing
Key Advantages
The low-water-volume once-through design enables steam generation in approximately 3–5 minutes under specified start-up conditions, reducing warm-up losses and responding quickly to changing steam demand.
The W-shaped flue-gas path and fin-connected dual-ring vertical tubes expand effective heat-transfer area, supporting ≥98% thermal efficiency under specified design and operating conditions.

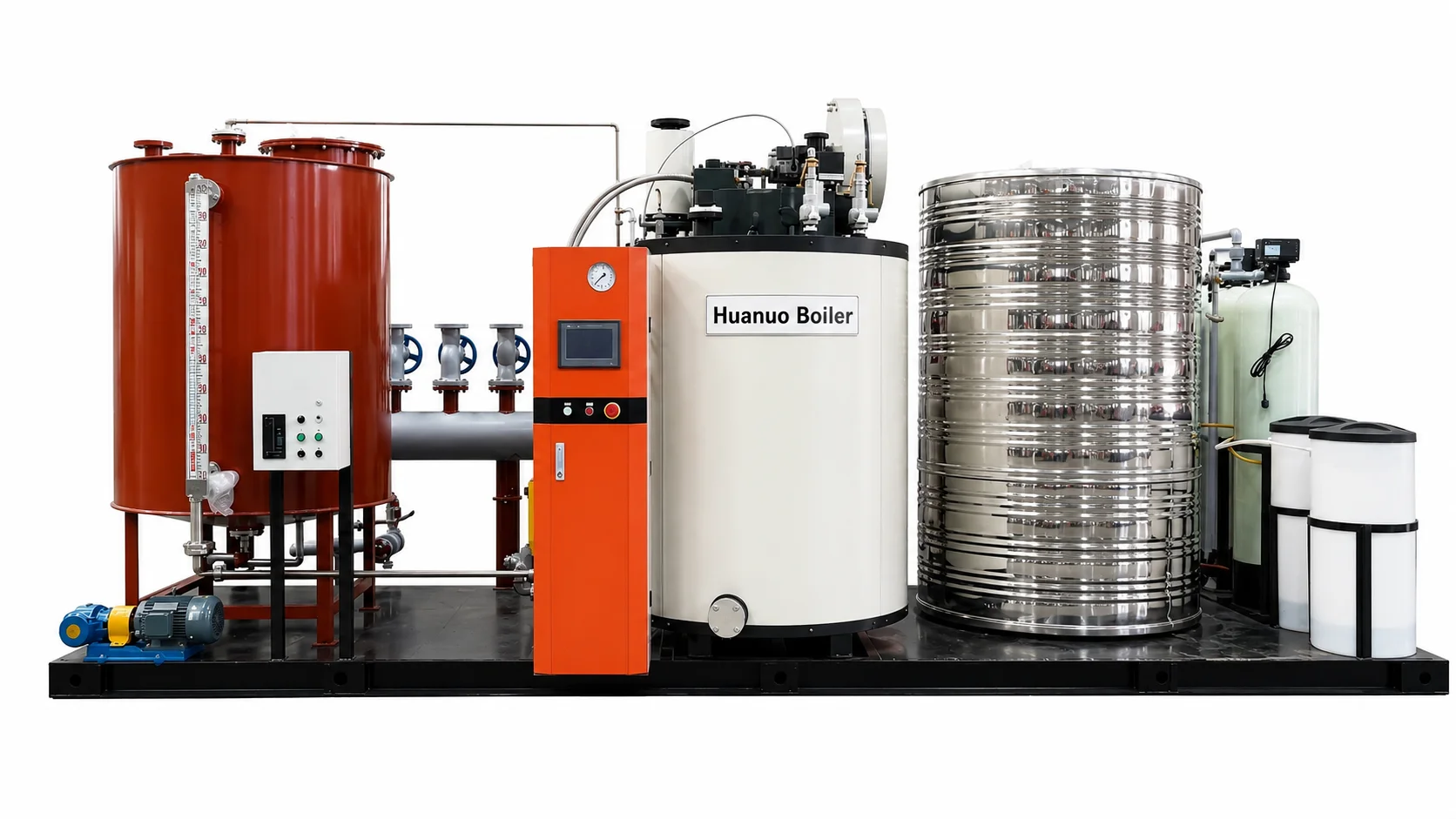

Factory-assembled vertical construction minimizes installation footprint and on-site work. Multiple units can operate in parallel for flexible capacity adjustment and staged steam supply.
Network-enabled controls support remote multi-unit monitoring of fuel use, steam output, pressure, and temperature, with automated daily and monthly reports when the connected system is configured.
A sound-absorbing structure helps reduce operating noise, while optimized combustion control supports low-NOx performance tailored to the selected fuel and local emission requirements.
Standardized automatic or semi-automatic CO₂ welding supports consistent seam quality. Seamless-tube preheaters with sandblasted and hot-dip-galvanized surfaces improve component durability and service reliability.
Typical Applications
Cooking, blanching, cleaning, and small-batch process heating
Garment pressing, washing, dyeing, and fabric finishing
Washing, steam ironing, and textile finishing
Batch vessel heating, process cleaning, and utility steam
Drying, adhesive processing, and equipment cleaning
Laundry, cleaning, and centralized utility steam
Technical Specifications
| Model | LSS0.3–0.7–Y·Q | LSS0.5–0.7–Y·Q | LSS0.75–1.0–Y·Q | LSS1–1.0–Y·Q | LSS2–1.0–Y·Q | LSS3–1.0–Y·Q | LSS4–1.0–Y·Q | |||
| Performance | Rated capacity | Kgh | 300 | 500 | 750 | 1000 | 2000 | 3000 | 4000 | |
| Rated working pressure | MPa | 0.7 | 0.7 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | ||
| Fuel boiler capacity | m³ | 0.134 | 0.19 | 0.206 | 0.256 | 0.49 | 0.61 | 0.8 | ||
| Boiler efficiency | % | 92–96 | 92–96 | 92–96 | 92–96 | 92–96 | 92–96 | 92–96 | ||
| Energy saver | – | 5.4 | 6.6 | 7.8 | 9 | 11.5 | 35 | 45 | ||
| Combustion type | – | ON–OFF | ON–OFF | ON–OFF | ON–OFF | ON–OFF | ON–OFF | ON–OFF | ||
| Fuel consumption | Natural gas | Nm³/h | 22.6–21.8 | 37.7–36.3 | 56.5–54.4 | 75.3–72.6 | 150.7–145.1 | 226.1–217.7 | 290.2–301.4 | |
| Gas inlet diameter | Kgh | 18.7 | 31.2 | 46.7 | 62.3 | 124.6 | 186.9 | 249.2 | ||
| Total power consumption of boiler | KW | 1.35 | 2.45 | 3.2 | 3.9 | 11.4 | 19.3 | 22.8 | ||
| Weight of equipment | Kg | ~ 900 | 1320 | 1630 | 2050 | 2990 | 3345 | 3985 | ||
| Pipe performance & connection size | Gas inlet diameter | mm | 25 | 40 | 40 | 40 | 50 | 65 | 65 | |
| Feed water inlet diameter | 20 | 25 | 25 | 25 | 40 | 40 | 40 | |||
| Steam outlet diameter | 25 | 40 | 40 | 50 | 65 | 80 | 100 | |||
| Pipe diameter | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |||
| Safety valve diameter | 20 | 25 | 25 | 32 | 25、32 | 40、40 | 40、40 | |||
| Auto discharge | – | – | – | 10 | 10 | 15 | 15 | |||
| Chimney diameter | mm | 200 | 250 | 330 | 330 | 360 | 400 | 450 | ||
| Size | Boiler dimensions | Length | mm | 1500 | 1750 | 1900 | 2000 | 2200 | 2400 | 2400 |
| Width | mm | 1150 | 1250 | 1120 | 1500 | 2200 | 2370 | 2470 | ||
| Height | mm | 1900 | 2300 | 2230 | 2400 | 2500 | 2600 | 3350 | ||
